Tick Tac Toe

<< Back to the SDG Toolkit page

Below is the full code required to make a minimal Tic Tac Toe game built out of SDG Widgets.

In this tutorial you will learn how to create and SDG user control (a widget), and how to use it within an application.

Download: SdgTicTacToe.zip
Source: SdgTicTacToeSrc.zip
Unzip all files (executables plus dependancies) into a single folder


The Tic Tac Toe game will be assembled by creating an SDG User Control similar to that created in the last tutorial, and using these within a window.


1) Create the empty project. As in the other tutorials, create a C# project. Call it TicTacToe

2) Add a reference to the SDGToolkit. In the Solution Explorer on the left of the screen, right click in the references folder and choose Add Reference from the context menu. Click on the "Browse" button and find the location where you saved the SDG Toolkit. Select the dll, and click "Ok" to add the Sdg Toolkit Reference.

3) Create a Standard User Control.

  • First, create a standard User Control by raising the context menu on your project and then selecting the Add User Control... option as shown in the figure below.

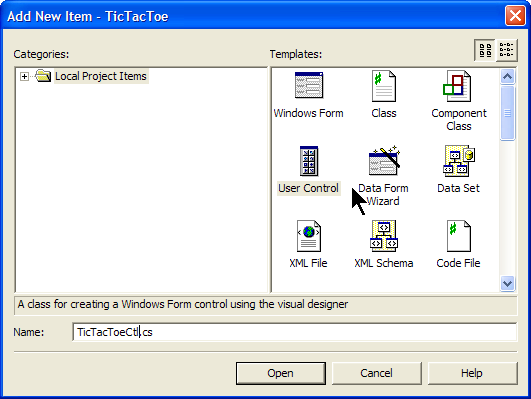

  • From the dialog box that appears, select the User Control icon and call it TicTacToeCtl.cs (as in the figure). Select Ok, and you will now see an empty user control in Visual Studio

4) Change the User Control into an SDG User Control. To do this, we change the class to inherit from Sdgt.SdgUserControl instead of System.Windows.Forms.UserControl. This will add Sdg functionality to it.

  • Right click on the empty user control and select View Code.
  • Replace the line
public class TicTacToeCtl: System.Windows.Forms.UserControl


public class TicTacToeCtl: Sdgt.SdgUserControl
  • Finally, close the user control designer, compile your code and reopen the user control designer. This is necessary if you want to see the SDG properties in Visual Studio.s

5. Add a label to this control. This will display the X or O. This is standard C#.

  • Go back to the design view of the control
  • Click on the toolbox, select the label tool and click and drag a label on the form.
  • Change the following properties of the label, after which it should look like what is shown below
    • TextAlign = MiddleCenter.
    • Dock = Fill
    • Font Size = 36
    • Text = - (or make it empty, but the - makes it easier to see for now).
    • BorderStyle = FixedSingle
    • BackColor = Web -> Transparent.

6. ''Make the control respond to different user's actions.

  • Go to the properties -> Events section of your TicTacToeCtl.

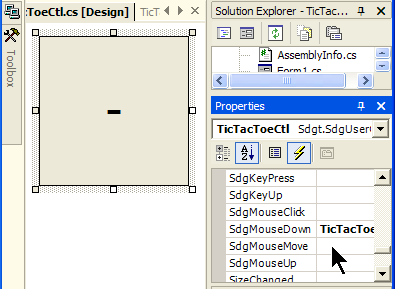

  • You should see the new SDGevents diagramed below.
  • Double Click on the SdgMouseDown selection to add an SdgMouseDown event handler. This will open up that handler in the code view.
  • Add the following code to that event handler
if (e.ID == 0) {
    label1.BackColor = Color.LightBlue;
    label1.Text = "X";
} else if (e.ID == 1) {
    label1.BackColor = Color.LightGoldenrodYellow;
    label1.Text = "0";

7. Use this control to create the Tic Tac Toe game

  • Compile. This will make your user control accessible to your main Forms window.
  • Click the Design view of Form1.
  • As in the previous tutorial, add an SdgManager and set it's RelativeTo property to "Form1"
  • In the Toolbox, you will see a section titled 'My User Controls'. Open it, and yo should see the TicTacToeCtl within it.

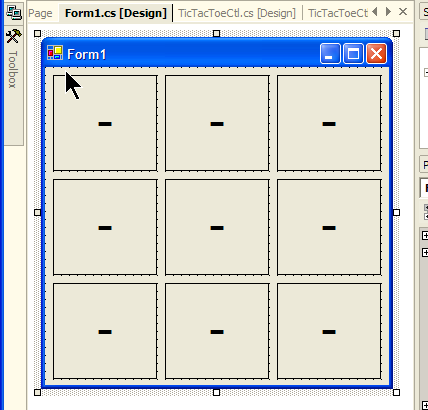

  • Drag nine of these controls onto Form1 so it looks like what you see below.
  • Compile, and play!

8. Of course, there is no game logic in this version. You can add that through conventional programming. For example, it would be useful to be able to reset each tic tac control back to its original state (i.e. Transparent color, with a '-'). You can do this simply by adding a public method called, say, Reset, to the control:

public void Reset ()
      label1.BackColor = Color.Transparent;
      label1.Text = "-";

When you decide that its time to restart the game, you can call the reset method for each of the controls.
